GUARD™

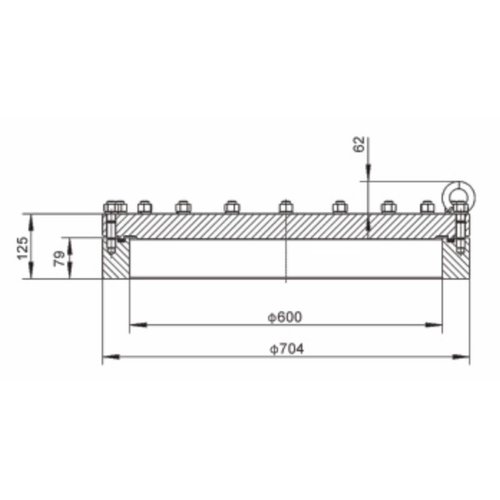

600 mm FBM Manlid Assembly SS 316L 20 points
€4.205,91
€3.475,96 Ex. BTW/VAT
20 point fastening cover 18 equi-spaced on
565.2PCD. 20-M16 bolts with PTFE seal, contact
parts in SS 316L, fits for high pressure tank.
Part No. R45JA802-00
Nominal diameter 600mm
Design Pressure 4 Bar
Test pressure 6 Bar
Points 20 Material
565.2PCD. 20-M16 bolts with PTFE seal, contact
parts in SS 316L, fits for high pressure tank.
Part No. R45JA802-00
Nominal diameter 600mm
Design Pressure 4 Bar
Test pressure 6 Bar
Points 20 Material
Out of Stock
Article code: R45JA802-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
20 point fastening cover 18 equi-spaced on
565.2PCD. 20-M16 bolts with PTFE seal, contact
parts kin SS 316L, fits for high pressure tank.
Part No. R45JA802-00
Norminal Diameter 600mm
Design Pressure 4 Bar
Test Pressure 6 Bar
Points 20 Material SS 316L Design Temperature -40 ~170 degree celsius
