GUARD™
1,5" Double Connection Air Ball Valve SS 316 PTFE seal
€286,96
€237,16 Ex. BTW/VAT
Part No. QKB04003-00

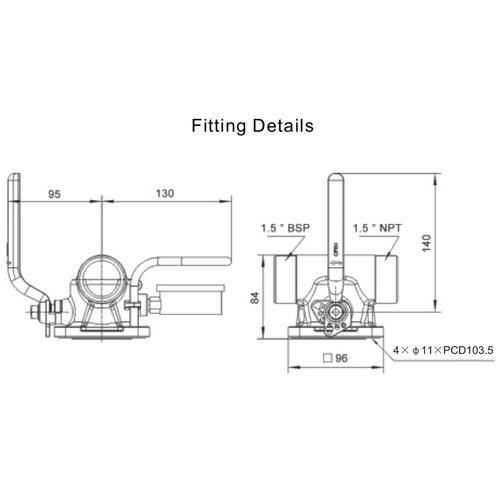

Connection container flange
Drilling 4x 11x CD103.5
Outlet 1.5" BSP 1.5" NPT
Nominal diameter 32 mm
MAWP 10 bar
Contact parts in SS 316
Seal PTFE
Design temperature -40 ~190 C
Connection container flange
Drilling 4x 11x CD103.5
Outlet 1.5" BSP 1.5" NPT
Nominal diameter 32 mm
MAWP 10 bar
Contact parts in SS 316
Seal PTFE
Design temperature -40 ~190 C
In stock
Article code: QKB04003-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

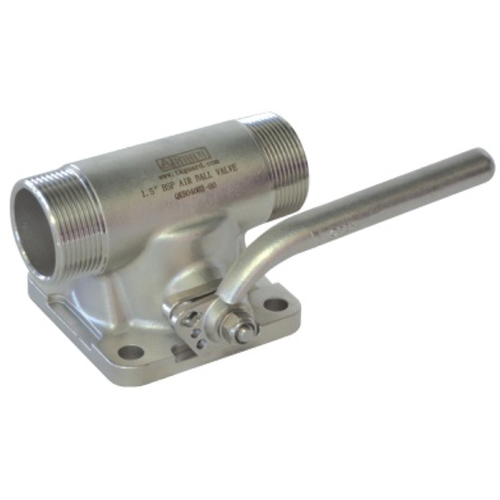

1.5" Double Connection Air Ball Valve 1.5"
BSP and 1.5" NPT male connection. Complete with
pressure gauge connection and TIR facility to handle.
Part No. QKB04003-00
Connection container flange
Drilling 4x 11x CD103.5
Outlet 1.5" BSP 1.5" NPT
Nominal diameter 32 mm
MAWP 10 bar
Contact Parts in SS 316
Seal PTFE
Design Temperature -40 ~190 C
