GUARD™

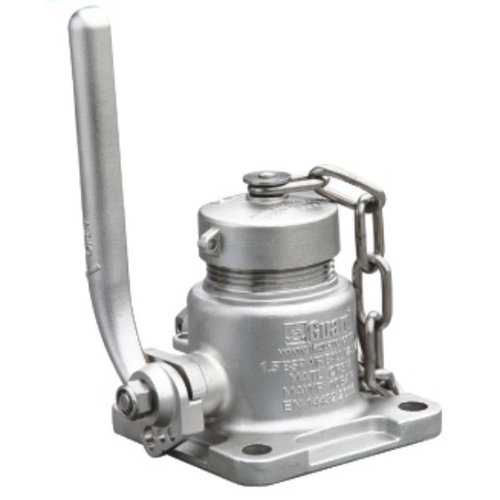

1,5 inch Air Inlet Ball Valve, 316L Stainless Steel
€121,31
€100,26 Ex. BTW/VAT
1.5" BSP Air Inlet Ball Valve 1.5" BSP connection.
With pressure gauge and protection connection and
leading seal. The pressure gauge is mounted on the left
side of the handle.
Option Protection, gauze filter and outlet connector.
Part No. QKB0
With pressure gauge and protection connection and
leading seal. The pressure gauge is mounted on the left
side of the handle.
Option Protection, gauze filter and outlet connector.
Part No. QKB0
In stock
Article code: QKB04001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
1,5" BSP Air Inlet Ball Valve 1,5" BSP connection.
With pressure gauge and protection connection. The pressure gauge is mounted on the left side of the handle.
Option Protection, gauze filter and outlet connector.
Part No.: QKB04001-00
Connection Container

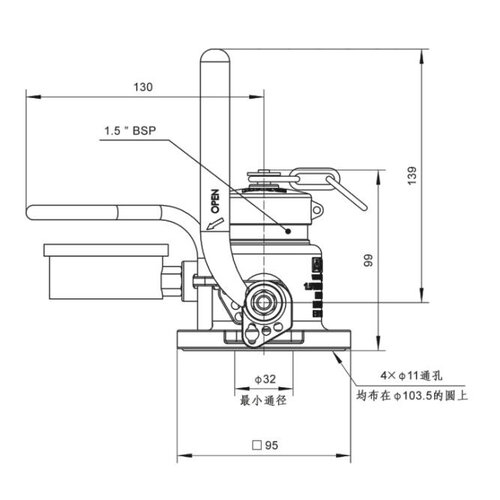

Flange Drilling 4x 11x PCD103.5
Outlet 1,5" BSP
Nominal Diameter 32mm
MAWP 10 Bar
Contact Parts 316
Seal PTFE, Viton
Design Temperature -40 ~ 190 degree celsius
Weight 1.7kg
