GUARD 500mm Deep Neckring Manlid Assembly, 8 Points
GUARD 500mm Deep Neckring Manlid Assembly, 8 Points
GUARD 500mm Deep Neckring Manlid Assembly, 8 Points
GUARD

500mm Deep Neckring Manlid Assembly, 8 Points

€895,44

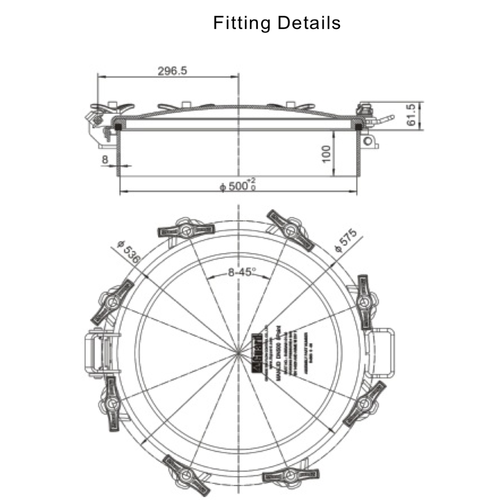

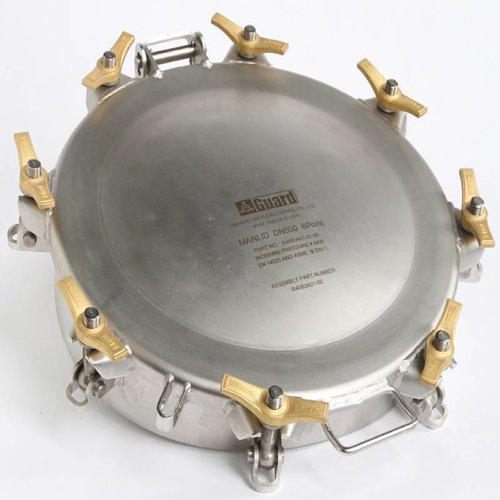

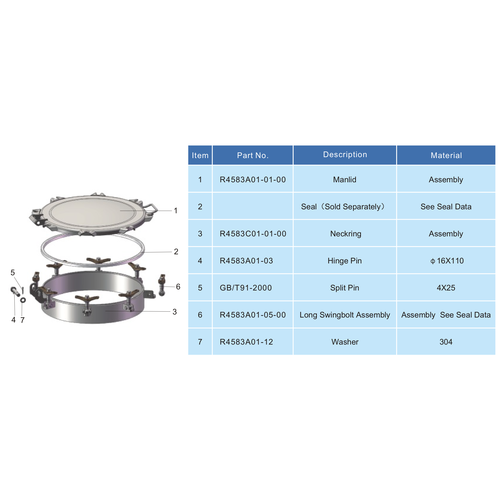

500mm Deep Neck Ring Manlid Assembly 8 Points
fastening. 8mm thick x 100mm deep neck ring profiled to
suit tank radius. Stainless steel bolt with brass
hand nuts. Seal sold separately.
Option double skin cover.

Part No. R4583C01-00
Nominal diame
Out of Stock
Article code: R4583C01-00
Product description

500mm Deep Neck Ring Manlid Assembly 8 Points
fastening. 8mm thick x 100mm deep neck ring profiled to
suit tank radius. Stainless steel bolt with brass
hand nuts. Seal sold separately.
Option double skin cover.

Part No. R4583C01-00
Nominal Diameter 500 mm
Design Pressure 4 bar (58PSI)
Test Pressure 6 bar (87PSI)
Points 8
Material SS 316L
Design Temperature -40 ~200 degrees Celsius

(Temperature range depends on the type of seal)
