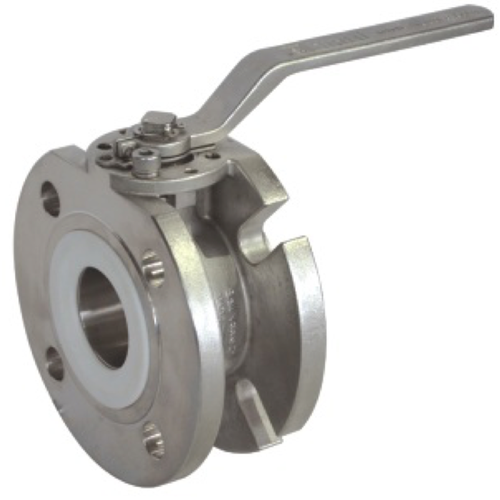

GUARD 2" Full Bore Ball Valve, MAWP 7 bar, 316 Stainless Steel DN50
GUARD 2" Full Bore Ball Valve, MAWP 7 bar, 316 Stainless Steel DN50
GUARD 2" Full Bore Ball Valve, MAWP 7 bar, 316 Stainless Steel DN50
GUARD

2" Full Bore Ball Valve, MAWP 7 bar, 316 Stainless Steel DN50

€361,94
€299,12 Ex. BTW/VAT
2" Full Bore Ball Valve Left open or Right open ,
with lead seal hole. The ball valve is used as top
discharge manually or with actuators. With floating
bottom ball seal and dual-seal, the seal of valves is
adjusted by tightening the screw kits.
In stock
Article code: QLF75001-00
Product description

2" Full Bore Ball Valve Left open or Right open ,
with lead seal hole. The ball valve is used as top
discharge manually or with actuators. With floating
bottom ball seal and dual-seal, the seal of valves is
adjusted by tightening the screw kits.

Part No. QLF75001-00

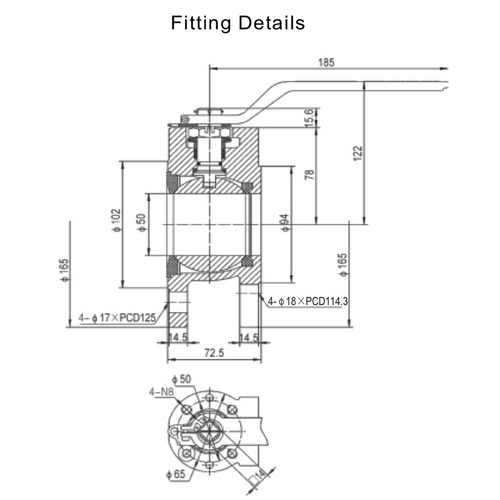

Connection
Container Flange 4x17 PCD125
Outlet 4x18 groove hole PCD114.3
Nominal Diameter 50mm
MAWP 7 Bar
Contact Parts in SS 316
Seal PTFE Viton
Design Temperature -40 190 degrees celsius
Weight 5.9 kgs
