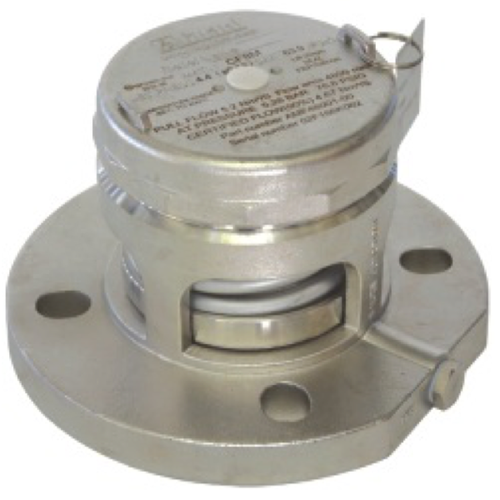

GUARD™ Safety Relief Valve 2.5" Flanged
GUARD™ Safety Relief Valve 2.5" Flanged
GUARD™ Safety Relief Valve 2.5" Flanged
GUARD™ Safety Relief Valve 2.5" Flanged
GUARD™

Safety Relief Valve 2.5" Flanged

€338,56
€279,80 Ex. BTW/VAT
Pressure 4,4bar, vacuum 0.21bar, SS 316, encapsulated O-Ring
Out of Stock
Article code: APF46502-00
Product description

Part No. APF46502-00
Nominal Diameter DN65

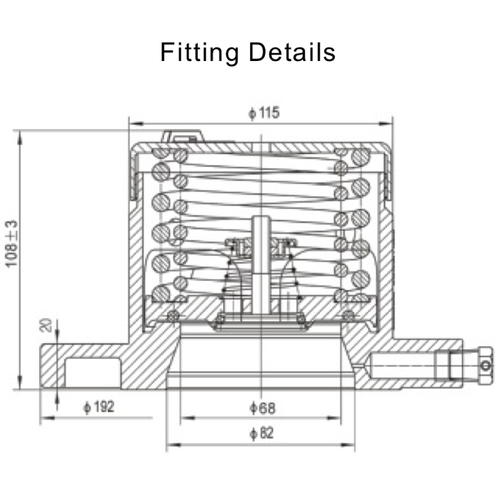

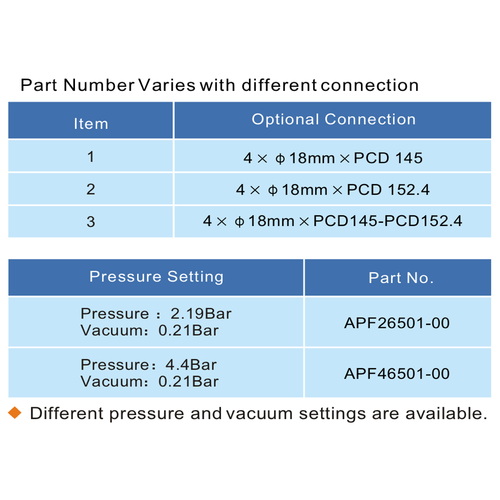

Connection Tank Flange 4 x 18 x PCD145
Pressure Setting 4.4Bar/63.8PSIG
Vacuum Setting 0.21Bar/6.2 HG
Contact Parts in SS 316L
Seal Encapsulated O-Ring
Design Temperature -55 ~ 200 C
Weight 5.26kg
