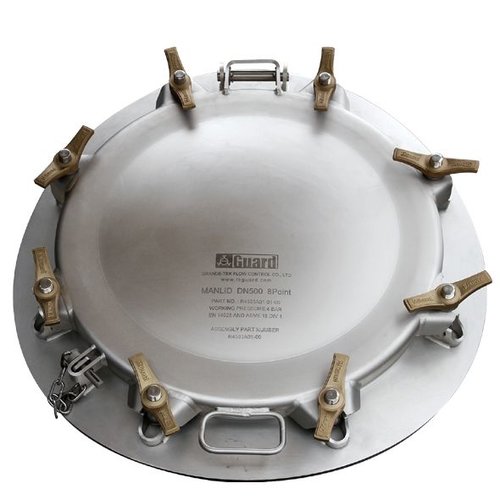

GUARD Manlid Assembly 500 mm Low Profile, 8 Points fastening
GUARD Manlid Assembly 500 mm Low Profile, 8 Points fastening
GUARD Manlid Assembly 500 mm Low Profile, 8 Points fastening
GUARD Manlid Assembly 500 mm Low Profile, 8 Points fastening
GUARD

Manlid Assembly 500 mm Low Profile, 8 Points fastening

€741,52

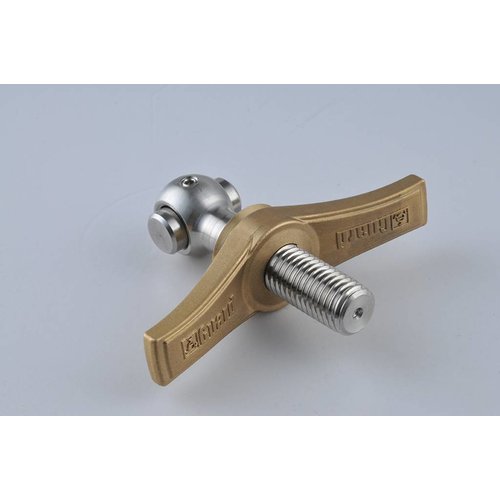

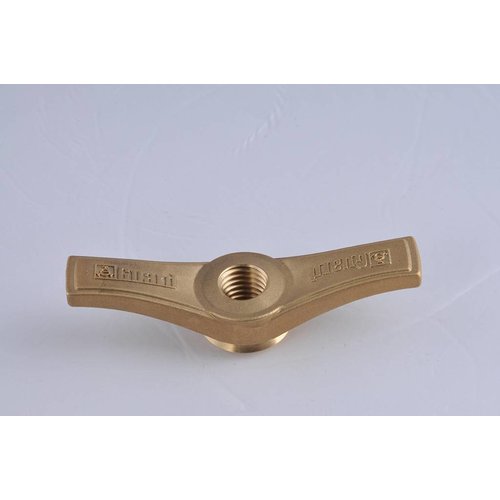

Manlid Assembly - 500 mm Low Profile, 8 points fastening, 8mm neck-ring profiled to suit tank radius. Stainless steel swing bolts with stainless steel handnuts or brass handnuts. Seal sold separately.
Option "DOUBLE SKIN COVER"

Part No. R4583A01-00
In stock
Article code: R4583A01-00
Product description

Manlid Assembly - 500 mm Low Profile, 8 Points fastening, 8mm neck-ring profiled to suit tank radius. Stainless steel swing bolts with stainless steel handnuts or brass handnuts.

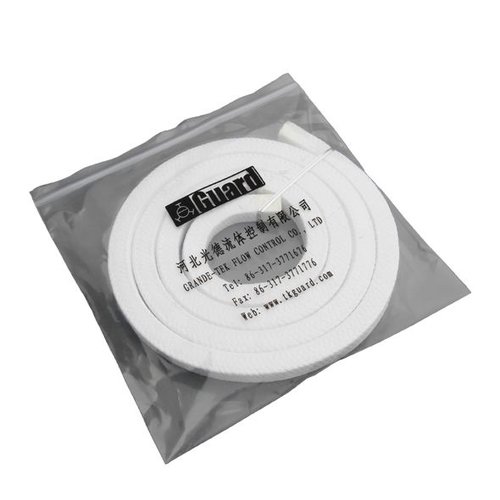

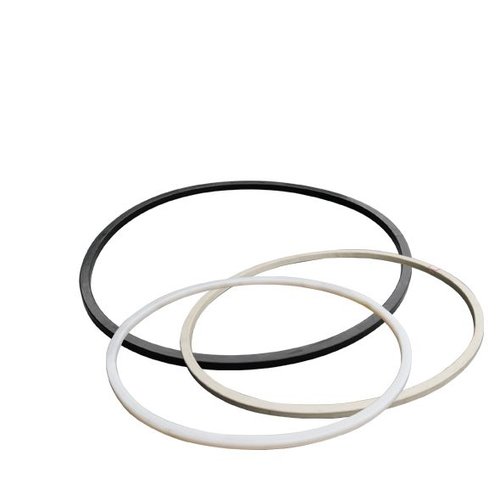

Seal sold separately.

Option "DOUBLE SKIN COVER" Its thermal insulation keeps medium from influenced by outer temperature.

Design Pressure 4 bar, Test Pressure 6 bar. 316 Stainless Steel.

Part No. R4583A01-00
Nominal Diameter 500mm
Design Pressure 4 bar(58PSI)
Test Pressure 6 bar(87PSI)
Points 8
Material SS 316L
Design Temperature -40 ~200 degree Celsius
