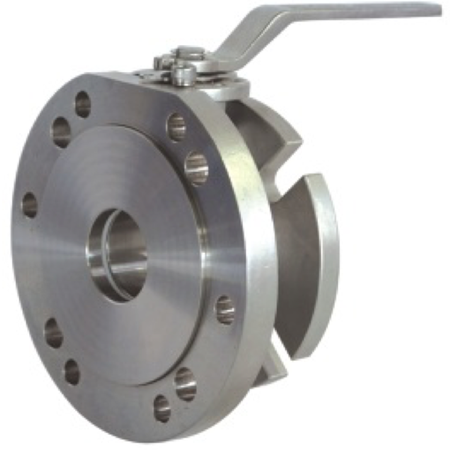

Full Bore Ball Valves for Tank Containers and Tank Trucks – 2", 3" and 4"

Guard Europe supplies high-quality Full Bore ball valves for tank containers, ISO tank containers and tank trucks. These ball valves are designed to ensure efficient flow and reliable shut-off of liquids in tank transportation and industrial applications.

Thanks to their Full Bore design, the internal passage has the same nominal diameter as the connection, helping to minimise flow resistance. The ball valves are available in sizes 2", 3" and 4", with various designs and operating options depending on the application.

Applications of Ball Valves

Guard Europe's ball valves are suitable for a wide range of applications in tank transportation and industrial installations, including:

• Top shut-off valves and discharge valves

• Air inlet and venting systems, where suitable for the specific design

• Manually operated valves

• Valves fitted with actuators for automated operation

The appropriate design depends on the medium, operating conditions and required connections.

Technical Specifications

• Sizes: 2", 3" and 4"

• Design: Full Bore for unrestricted flow

• Operation: Left-hand or right-hand opening, depending on the design

• Sealing: Provision for lead sealing

• Bottom connection: Floating ball design, depending on the model

• Connections: Various connection configurations available

• Operating options: Manual operation or actuator, depending on the design

• Standard: EN 14432, depending on the product version and applicable certification

Quality and Technical Support

Guard Europe offers ball valves for professional use in tank transportation and industrial applications. Depending on the model, various connections, operating options and configurations are available.

Our specialists will be happy to help you select the right ball valve based on the application, required dimensions and technical requirements of your installation.

Looking for a Full Bore ball valve for your tank container or tank truck? Contact Guard Europe for more information, product advice or a quotation.
