GUARD™

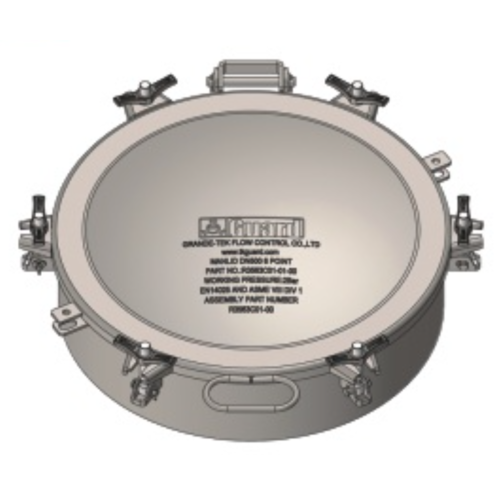

DN500 Vehicle Manlid Assembly
€0,00
€0,00 Ex. BTW/VAT
Nominal Diameter: 500mm
Test pressure: 2Bar (29PSI)
Points: 6
Design Temperature: -40ºC ~ +200ºC
Cover Weight: 11.5kg
Neck-ring Weight: 7.8kg
Test pressure: 2Bar (29PSI)
Points: 6
Design Temperature: -40ºC ~ +200ºC
Cover Weight: 11.5kg
Neck-ring Weight: 7.8kg
In stock
Article code: R3563C01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
DN500 Vehicle Manlid Assembly -6points.1. The height of the neckring is 120mm, and a variety of sizes such as 150mm can be selected or customized. 2. The thickness of the neckring can be 5mm or 6mm; 3, neckring material: stainless steel 304/316L, and aluminum alloy (thickness 8mm), carbon steel material is optional; 4. Bolt assembly specification M14*80, if you need to improve bolt strength, you can choose M16 bolt assembly and matching; 5. The fastening part can be fixed at 8 points to improve the sealing stability. 6. The seal is provided separately;7. Contact us for customization of other special sizes.
