GUARD™

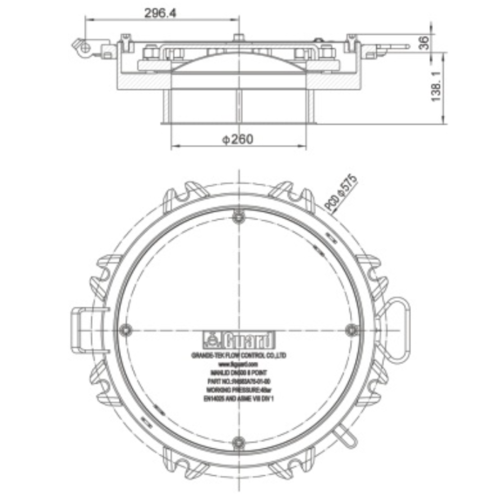

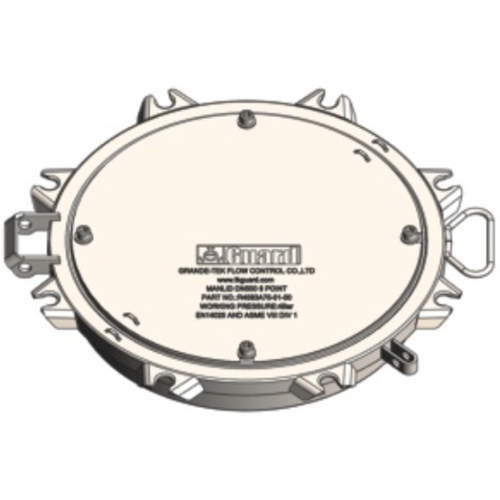

DN500 Manlid Assembly With Rupture Disc Holder -8 point. (500mm)
€3.580,27
€2.958,90 Ex. BTW/VAT

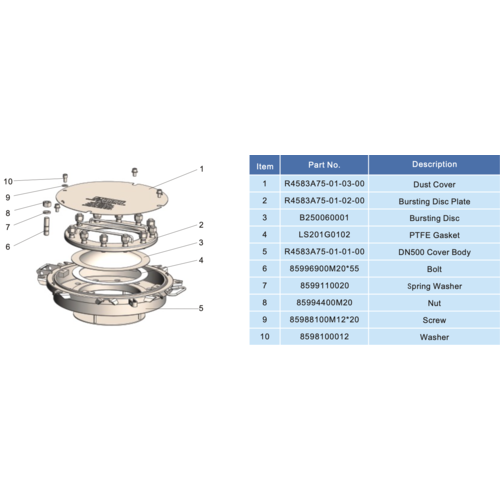

Manlid Assembly With Rupture Disc Holder -8 point.
Manlid cover with 10 "bursting disc mounting flange. Sunken structure saves space;
Nominal Diameter 500mm
Design Pressure 4Bar(58PSI)
Test Pressure 6Bar(87PSI)
Design Temperature - 40 ~ + 200
Wei
Manlid cover with 10 "bursting disc mounting flange. Sunken structure saves space;
Nominal Diameter 500mm
Design Pressure 4Bar(58PSI)
Test Pressure 6Bar(87PSI)
Design Temperature - 40 ~ + 200
Wei
In stock
Article code: R4583A75-01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Design Temperature - 40/ 200+
