GUARD™

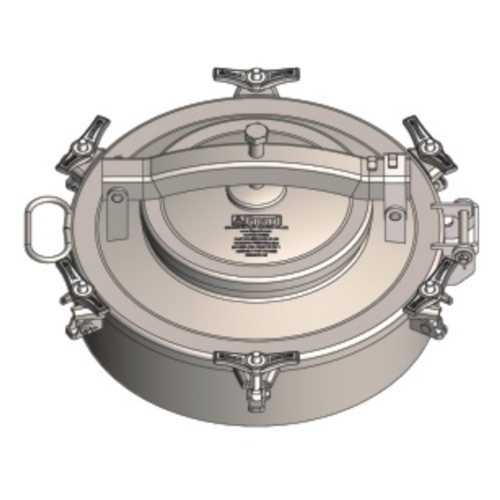

DN500 Atmospheric Vehicle Manlid Assembly
€0,00
€0,00 Ex. BTW/VAT

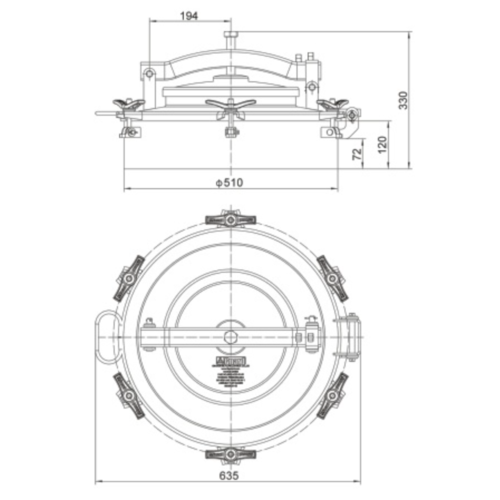

Nominal Diameter 500mm
Test Pressure 0.2Bar(2.9PSI)
Design Temperature: - 20ºC ~ + 200ºC
Cover Weight: 15.5kg
Neckring weight: 7.8Kkg
Test Pressure 0.2Bar(2.9PSI)
Design Temperature: - 20ºC ~ + 200ºC
Cover Weight: 15.5kg
Neckring weight: 7.8Kkg
In stock
Article code: R0563C01-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
Atmospheric Vehicle Manlid Assembly.DN500 cover quick- open bolt assembly locking, cover on the DN300 inspection cover cross beam gland structure, atmospheric pressure. Suitable for storage and transport medium under atmospheric pressure environment. The manlid cover opens and closes easily. Tighten the pressure bolt to seal the manlid cover.
