GUARD™

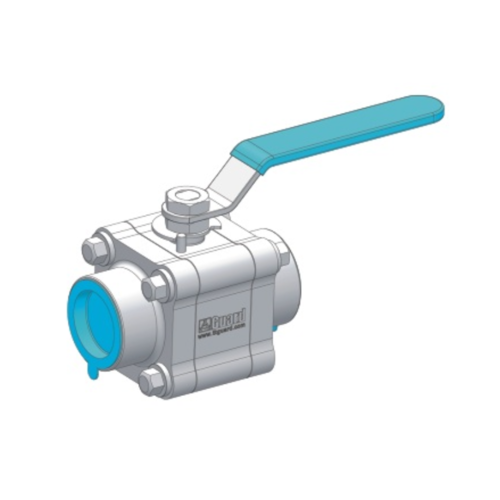

DN50 Carbon Dioxide Ball Valve
€0,00
€0,00 Ex. BTW/VAT
Connection
Nominal Diameter 50mm
Nominal Pressure 40Bar
Applicable Temperature
960PSIG AT 120º F
100PSIG AT 375º F
Contact Parts CF8M
Seal PTFE VITON
Nominal Diameter 50mm
Nominal Pressure 40Bar
Applicable Temperature
960PSIG AT 120º F
100PSIG AT 375º F
Contact Parts CF8M
Seal PTFE VITON
In stock
Article code: QTCD5001-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description

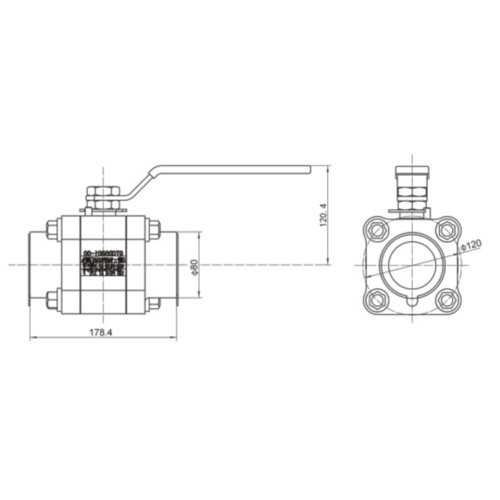

DN50 Carbon Dioxide Ball Valve inlet and outlet are socket welding joint form, socket welding joint inner hole are 58, the main seal is made of PTFE carbon filled material, and fireproof, similar products can be selected for DN15 DN40 DN50 DN65.
