GUARD™

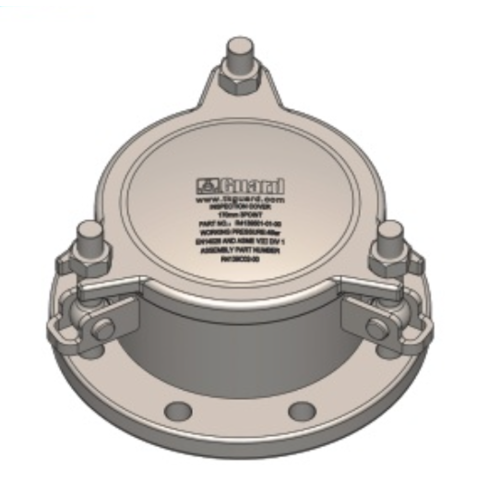

Flange Mounting Inspection Hatch (170mm)
€0,00
€0,00 Ex. BTW/VAT
170mm Inspection 3 points, 6mm thickness, neckring depths 100mm
( Including the height of flange )
Nominal Diameter: 170mm
Design Pressure: 4Bar (58PSI)
Test Pressure: 6Bar (87PSI)
Points: 3
Design Temperature: -20 °C ~ + 150 °C
Weight: 11.5
( Including the height of flange )
Nominal Diameter: 170mm
Design Pressure: 4Bar (58PSI)
Test Pressure: 6Bar (87PSI)
Points: 3
Design Temperature: -20 °C ~ + 150 °C
Weight: 11.5
In stock
Article code: R4139C02-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
DN170 Flange Mounting Inspection Hatch
