GUARD™ 500 mm FBM Manlid Assembly SS 316L 20 points
GUARD™

500 mm FBM Manlid Assembly SS 316L 20 points

€3.084,33
€2.549,03 Ex. BTW/VAT

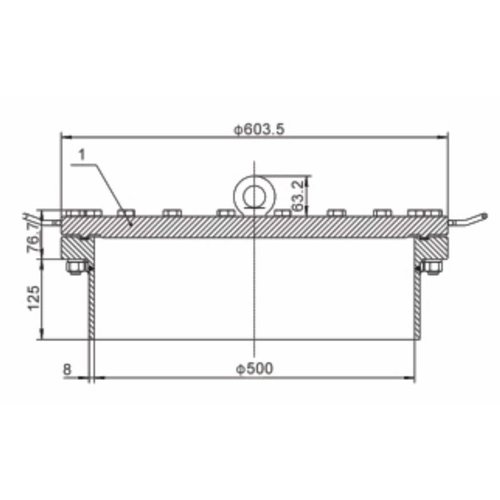

20 point fastening cover-20- 18 equi-spaced
on 565.2 PCD. M16 bolts with PTFE seal, contact
parts in SS 316L, fits for high pressure tank.

Part No. R75JA801-00
Nominal diameter 500 mm
Design pressure 7 bar
Test pressure 10 bar
Points 24 Ma
Out of Stock
Article code: R75JA801-00
Product description

20 point fastening cover-20- 18 equi-spaced
on 565.2 PCD. M16 bolts with PTFE seal, contact
parts 316L, fits for high pressure tank.

Part No. R75JA801-00
Norminal diameter 500 mm
Design Pressure 7 bar
Test Pressure 10 bar
Points 24

Material SS 316L
Design Temperature -40 ~170 Degree Celsius
