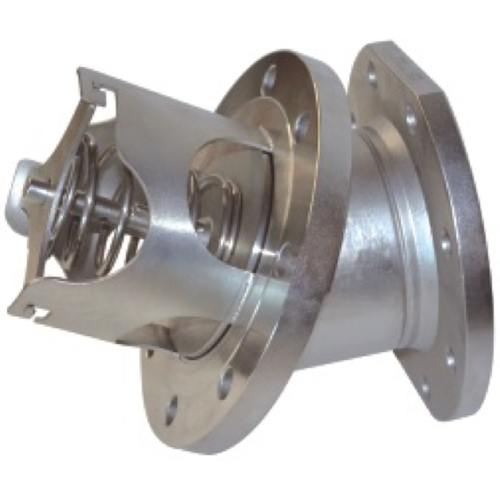

4" 45 degrees Foot Valve in SS 316 FEP / Silicon Seal
€1.052,85
4%22 45 Foot Valve

4" 45 degrees Foot Valve in SS 316 FEP / Silicon Seal

by GUARD™
Sold out
€0,00 - €0,00
€0,00
€870,12
€1.052,85 - €1.052,85
€870,12
Excl. VAT/BTW

Artikelcode: JS464C01-00

Description

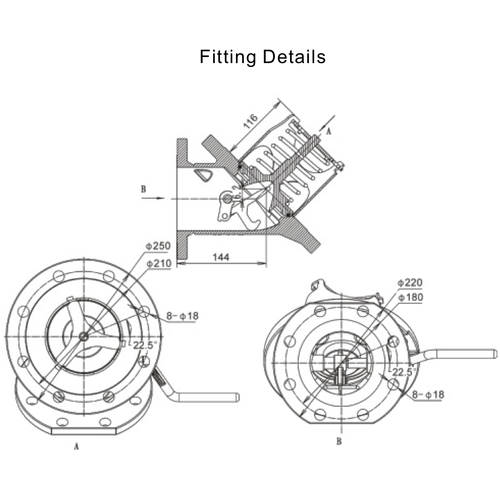

4" 45º Bottom Valve - Inlet flange drilled with 8x18 holes equally spaced on a 210 mm PCD; Outlet flange drilled with 8x18 holes equally spaced on a 180 mm PCD. Contact parts in 316 stainless steel with FEP/silicone seal.

Specifications
  • Connection: Drilled Flange 8x18xPCD210 Outlet 8x18xPCD180
  • Nominal Diameter: DN100
  • Nominal Pressure: 4Bar
  • Contact Parts: Stainless Steel 316
  • Seal: PTFE, Viton
  • Design Temperature: -40ºC ~ 200ºC
Advantages and disadvantages
Ordering and delivery

All prices are Ex Works (ex warehouse).

Exceptions may apply where different terms are agreed upon per order.

We ship via PostNL, GLS, or FedEx.

Service costs and availability depend on your order’s weight and delivery address. Returns are accepted only after prior consultation and approval.

For accepted returns, return shipping costs are borne by the purchaser, unless the incorrect delivery is the result of Guard Europe BV’s actions.
