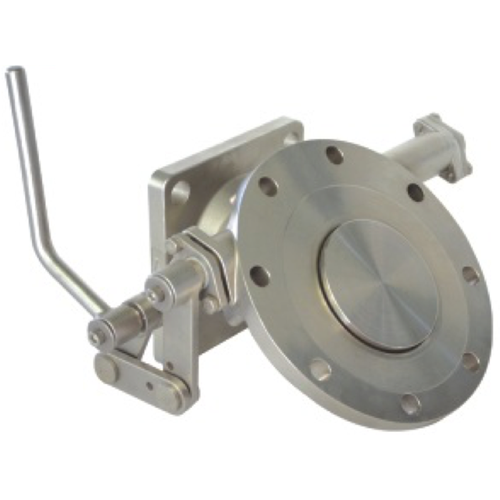

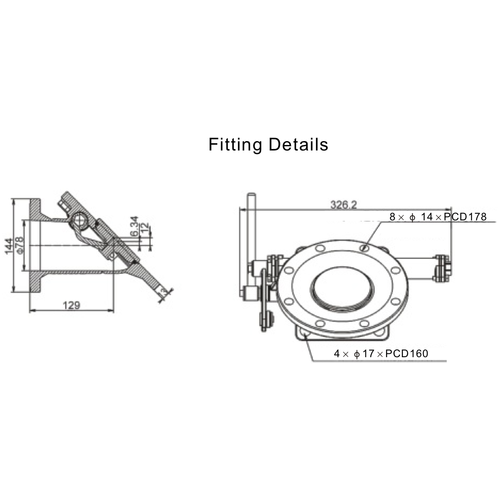

3" 45 degrees Swing Footvalve Inlet flange drilled 8
14mm holes equi-spaced on a PCD 178mm, Outlet flange
drilled 4x18mm holes equi-spaced on a PCD 160mm.
Option-Shutting-off device for emergency and fusible link.

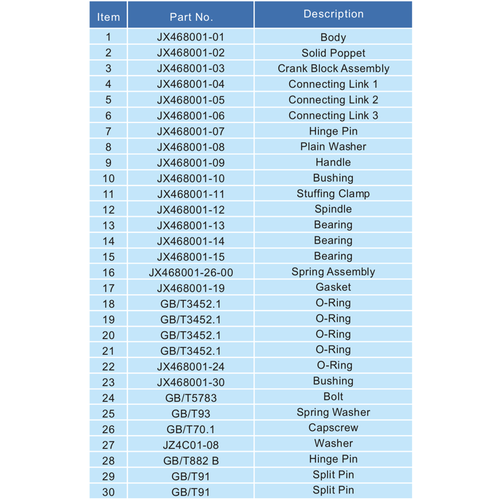

Part No. JX468001-00
Connection: Flange drilled 8 14 PCD 178 Outlet 4 17 PCD 160
Nominal Diameter 80mm
Nominal Pressure 6 Bar
Contact Parts in SS 316 Fitted with FEP/Silicon
Design Temperature -40 ~ 200 C
