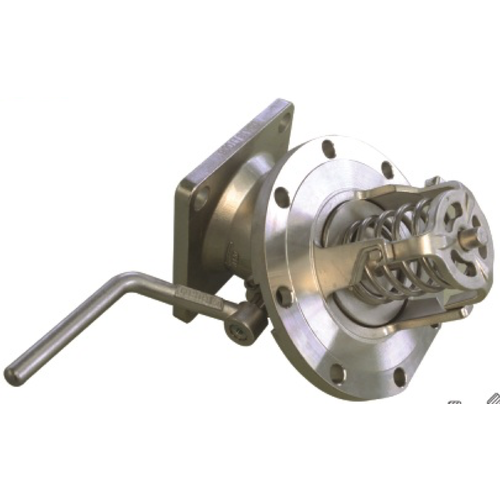

GUARD 3" 45° Foot Valve, Inlet 8×φ14×PCD178, Outlet 4×φ18×PCD160,
GUARD 3" 45° Foot Valve, Inlet 8×φ14×PCD178, Outlet 4×φ18×PCD160,
GUARD 3" 45° Foot Valve, Inlet 8×φ14×PCD178, Outlet 4×φ18×PCD160,
GUARD 3" 45° Foot Valve, Inlet 8×φ14×PCD178, Outlet 4×φ18×PCD160,
GUARD

3" 45° Foot Valve, Inlet 8×φ14×PCD178, Outlet 4×φ18×PCD160,

€456,57
€377,33 Ex. BTW/VAT
3" 45 Degrees Foot Valve - Flange drilled 8x14 PCD
178. Outlet 4x18 PCD160 Option-Shutting-off device for emergency and
fusible link.

Part No. JS468009-00

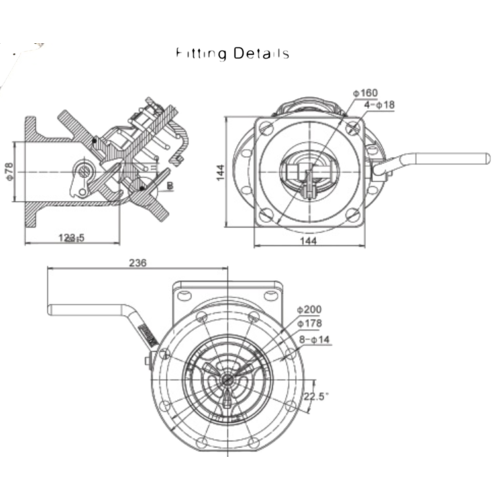

Connection
Flange drilled 8x14 PCD178
Outlet 4x18 PCD160
Nominal diameter 80mm
Nominal P
Out of Stock
Article code: JS468009-00
Product description

3" 45 degrees Foot Valve - Flange drilled 8x14 PCD
178. Outlet 4x18 PCD160 Option-Shutting-off device for emergency and
fusible link.

Part No. JS468009-00
Flange drilled 8x14 PCD178
Outlet 4x18 PCD160
Nominal Diameter 80 mm
Nominal Pressure 6 bar
Contact Parts in SS 316
Fitted with FEP/Silicon Encapsulated O-Ring
Design Temperature -40 200 degrees celsius
Weight 7.8 kg
