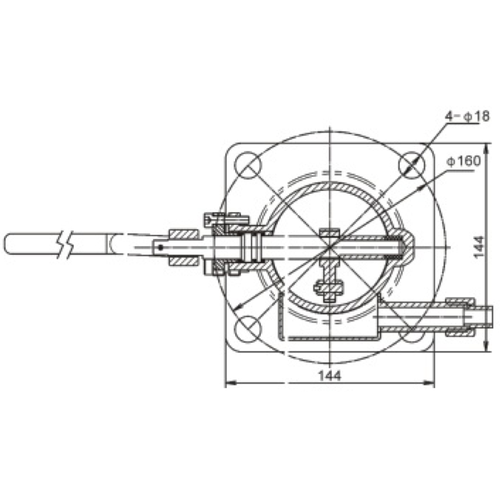

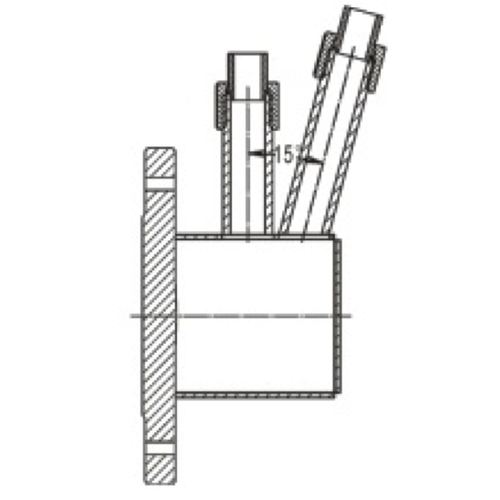

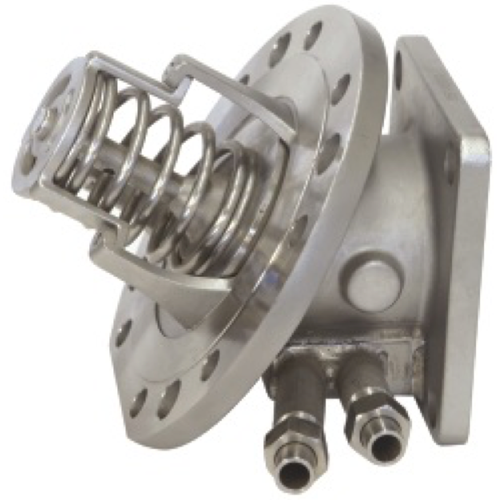

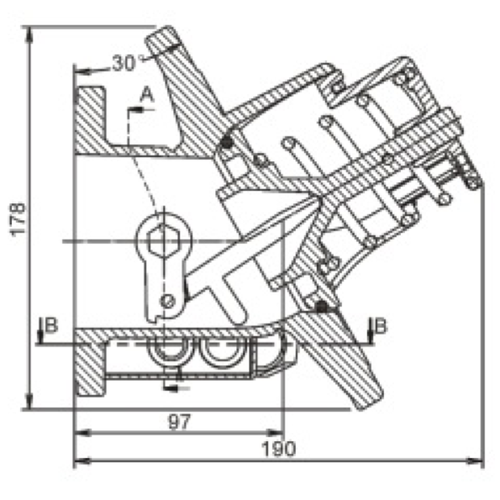

GUARD 3" 30° Foot Valve with heating, Inlet 8×φ14× PCD178
GUARD 3" 30° Foot Valve with heating, Inlet 8×φ14× PCD178
GUARD 3" 30° Foot Valve with heating, Inlet 8×φ14× PCD178
GUARD 3" 30° Foot Valve with heating, Inlet 8×φ14× PCD178
GUARD

3" 30° Foot Valve with heating, Inlet 8×φ14× PCD178

€513,67
€424,52 Ex. BTW/VAT
3" 30 degrees Foot valve with Heating Heating for
the transport of fluids that require it.
Option-Shutting-off device for emergency and fusible link.
4×φ18×PCD178, Outlet 4×φ18× PCD160, 316L Stainless Steel.
Out of Stock
Article code: JS368003-00
Product description

Part No. JS368003-00
Connection Flange drilled
4x18 PCD178 and 8x14 PCD178
Outlet 4x18 PCD160
Nominal Diameter 80 mm
Nominal Pressure 6 bar
Contact Parts in SS 316
Fitted with FEP/Silicon Encapsulated O-Ring
Design Temperature -40 - 200 degrees celcius
4×φ18×PCD178, Outlet 4×φ18× PCD160, 316L Stainless Steel.
