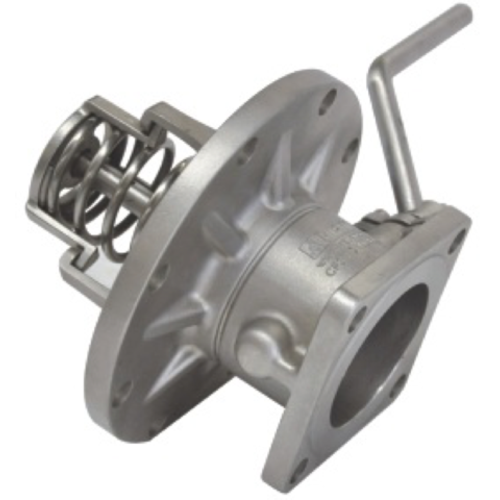

3" 180 degrees Foot Valve
€694,16
3 180 Footvalve

3" 180 degrees Foot Valve

by GUARD™
Sold out
€0,00 - €0,00
€0,00
€573,69
€694,16 - €694,16
€573,69
Excl. VAT/BTW

Artikelcode: JS168001-00

Description

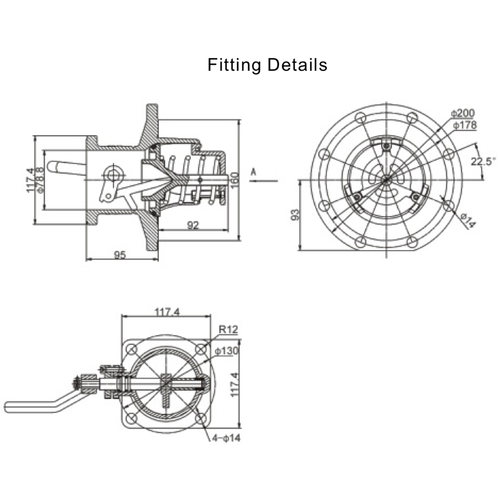

3" 180-degree bottom valve - Inlet flange drilled with 8x14mm holes equidistant from a PCD of 178mm, Outlet flange drilled with 4x14mm holes equidistant from each other on a PCD of 130mm. Option: Shut-off device for emergency and fusible link connection.

Specifications
  • Connection: Drilled Flange 8x14xPCD178 Outlet 4x14xPCD130
  • Nominal Diameter: 80mm
  • Nominal Pressure: 6Bar
  • Contact Parts: Stainless Steel 316
  • Equipped with FEP/Silicone Encapsulated O-ring
  • Design Temperature: -40ºC ~ 200ºC
Advantages and disadvantages
Ordering and delivery

All prices are Ex Works (ex warehouse).

Exceptions may apply where different terms are agreed upon per order.

We ship via PostNL, GLS, or FedEx.

Service costs and availability depend on your order’s weight and delivery address. Returns are accepted only after prior consultation and approval.

For accepted returns, return shipping costs are borne by the purchaser, unless the incorrect delivery is the result of Guard Europe BV’s actions.
