GUARD™
2.5'' Fixed Ball Valve
€0,00
€0,00 Ex. BTW/VAT

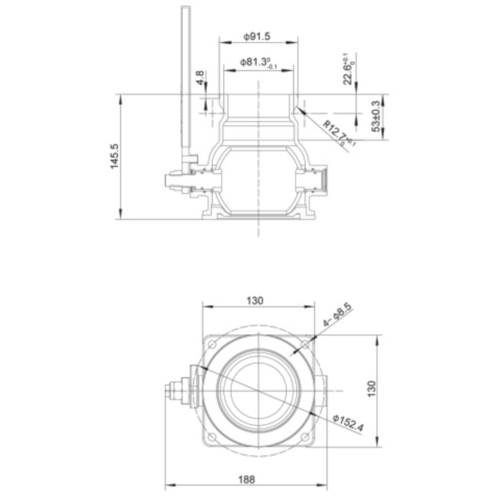

Connection :8.5XPCD152.4
Outlet: 3'' Quick Coupling
Nominal Diameter: 65mm
Nominal Pressure: 6Bar
Container Flange 4
Design Temperature: -40ºC ~ 200ºC
Contact Parts CF8M
Seal: PTFE, NR
Outlet: 3'' Quick Coupling
Nominal Diameter: 65mm
Nominal Pressure: 6Bar
Container Flange 4
Design Temperature: -40ºC ~ 200ºC
Contact Parts CF8M
Seal: PTFE, NR
In stock
Article code: QL566501-00
- High quality products
- Dedicated craftsmen
- Extensive range of products
- shipping & returns
Product description
2.5" Fixed Ball Valve-Inlet flange 4 8.5mm are all distributed on the 152.4 circles, outlet 3" DC connection. Sealing material can be PTFE and natural white rubber optional. Valve can be left open and right open selection.
