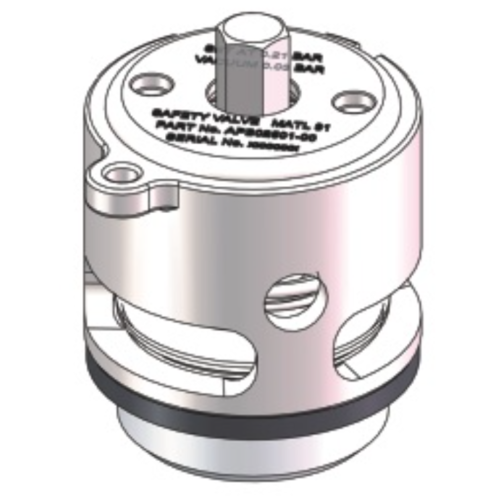

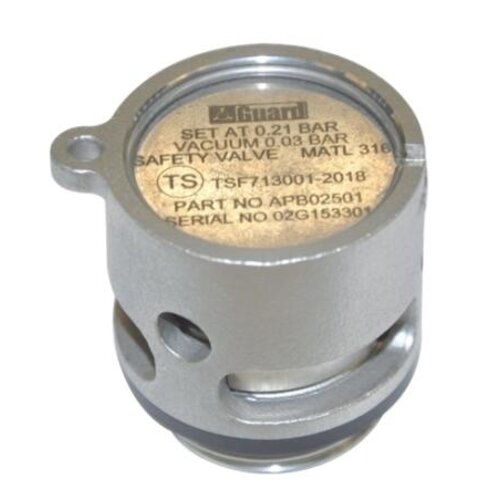

GUARD 1" BSP Safety Relief Valve
GUARD

1" BSP Safety Relief Valve

€81,75
1" BSP Safety Relief Valve 1" BSP Connection.
Suitable for a vacuum range of between 0.02-0.1 bar
(0.5 -3 HG) and a pressure range of between 0.07 3.1 Bar(1-45 PSI).
Complete with manual vent button and Viton tank seal.
Option : Flame proof gauze
M
Out of Stock
Article code: APB02501-00
Product description

1" BSP Safety Relief Valve 1" BSP Connection.
Suitable for a vacuum range of between 0.02-0.1 bar
(0.5 -3 HG) and a pressure range of between 0.07
3.1 bar(1-45 PSI). Complete with manual vent button
and Viton tank seal.
Option : Flame Proof Gauze

Part No. APB02501-00
Nominal Diameter DN25
Connection 1" BSP
Pressure Setting 0.21 bar
Pressure Setting 0.03 bar
Contact Parts in SS 316L
Seal Viton
Design Temperature -40 ~ 200 C

SS 316, Set Pressure 0,21 bar - Vacuum 0,03 Bar, -40°C - + 200°C; manual vent button, viton tank seal
